[Docker] Docker 이미지 생성 및 자동 배포(FastAPI 와 Gitlab CI/CD를 곁들인)

Python 프레임워크인 FastAPI로 작성된 API 서버를 Gitlab CI/CD를 이용하여 Docker 이미지로 자동 빌드, 배포하는 방법을 기록합니다.



0. 환경 및 실행 흐름

 - 개발 환경 : Windows 10 / Python 3.10 / FastAPI 0.72.0

 - 배포 서버 OS : Ubuntu 20.04.3 LTS / Docker 20.10.12 Community



대략적인 실행 흐름



1. Docker에 Gitlab-Runner, DinD Container 실행

# 1. Gitlab-Runner Image pull
sudo docker pull gitlab/gitlab-runner:latest
# 2. Check Image
sudo sudo docker image ls -a
# 3. Create Gitlab Runner Network
sudo docker network create gitlab-runner-net
# 4. Run Gitlab Runner 1 Container in Gitlab Runner Network
sudo docker run -d --name gitlab-runner-1 --restart always \
--network gitlab-runner-net -v /var/run/docker.sock:/var/run/docker.sock \
gitlab/gitlab-runner
# 5. Run DinD Container in Gitlab Runner Network
sudo docker run -d --name gitlab-dind --privileged --restart always \
-p 2375:2375 --network gitlab-runner-net -v /var/lib/docker docker:dind



2. Gitlab Repository에 Gitlab-Runner 등록

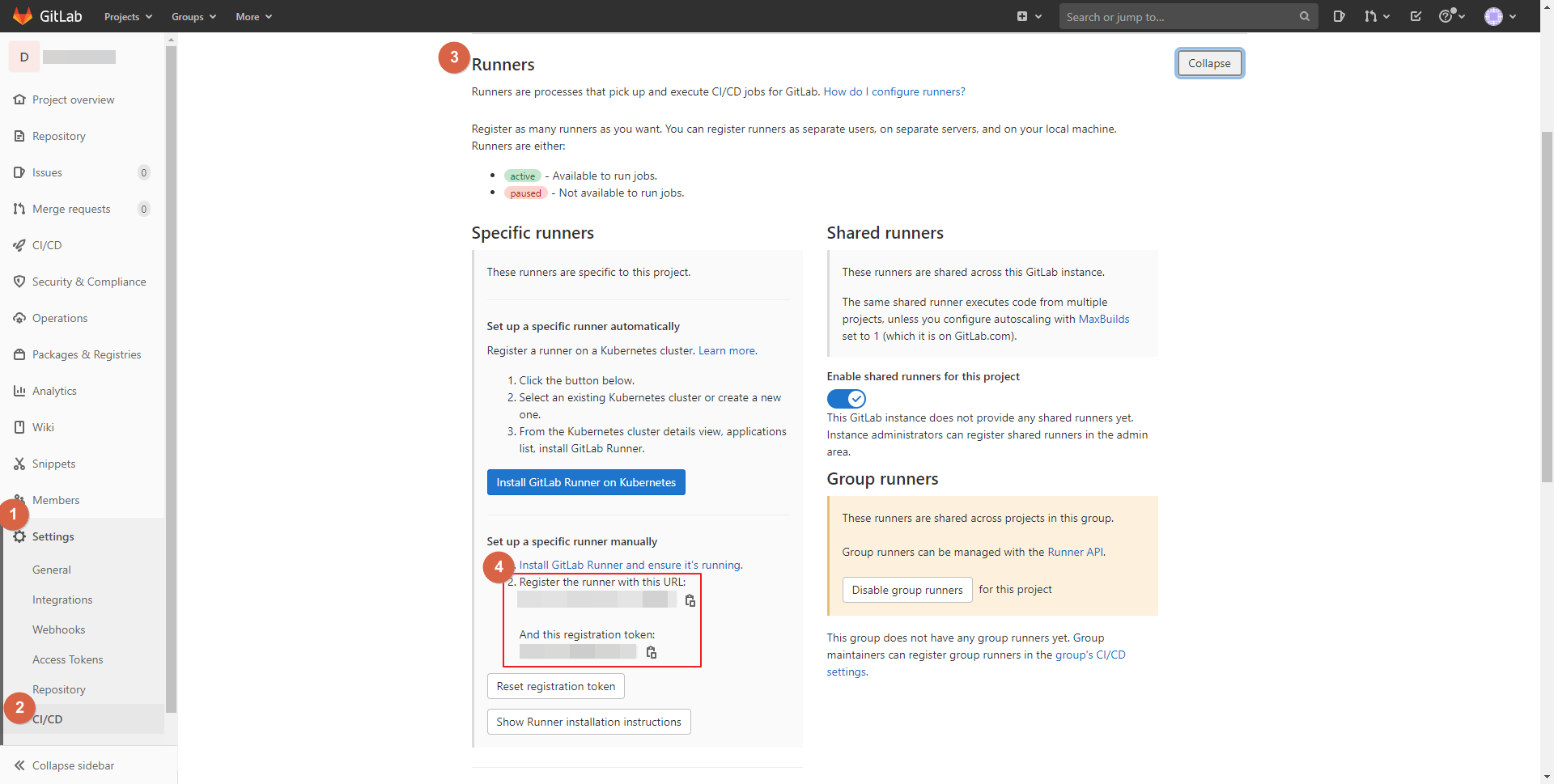

Gitlab URL과 Token

# 1. Exec gitlab-runner-1
sudo docker container exec -it gitlab-runner-1 bash
# 2. (In Container)Regist Runner
gitlab-runner register -n --url {Your Gitlab URL} \
--registration-token {Your Token} \
--description {Your Desc} \
--tag-list {Your Tags} \
--executor docker \
--docker-privileged \
--docker-image docker:stable

결과 확인



3. 프로젝트 설정 (.gitlab-ci.yml & Dockerfile)

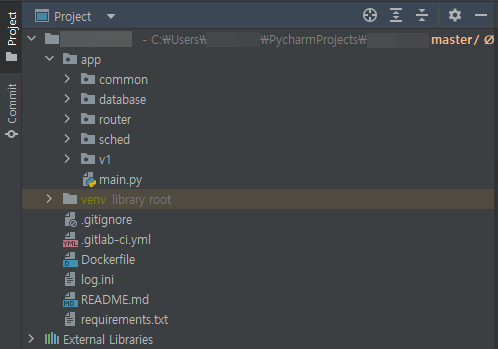

  1)  참고 - 프로젝트 구조

  2) gitlab-ci.yml

### .gitlab-ci.yml ###
image: docker:stable

variables:
  IMAGE_NAME: {Your Image Name}:$CI_COMMIT_SHA

services:
  - name: docker:dind

stages:
  - test
  - package
  - deploy

test:
  stage: test
  only:
    # 설정된 Branch만 Runner가 선별적으로 실행 함
    - master
  tags:
    # 설정된 Tag를 Runner가 선별적으로 실행 함
    - {Your Tag}
  script:
    # Runner Excutor
    - echo "Hello, $GITLAB_USER_LOGIN! You're now in test phase"
    # Image Name
    - echo "Will make $IMAGE_NAME, Good luck!"
    # Check Docker Info
    - docker info

docker-build:
  stage: package
  only:
    - master
  tags:
    - {Your Tag}
  script:
    # Check Package
    - ls -al
    - docker container ls -a
    # Build Docker Image
    - docker build . -t $IMAGE_NAME
    # Check Your Docker Image
    - docker images | grep '{Your Image Name}'

deploy:
  stage: deploy
  only:
    - master
  tags:
    - {Your Tag}
  script:
    - docker container ls -a
    # Remove last Container
    - docker container rm -f {Your Container Name}
    # Run New Container with 8000
    - docker run -d -p 8000:8000 --name {Your Container Name} --restart always $IMAGE_NAME
    - docker container ls -a

  3) Dockerfile

### Dockerfile ###
FROM python:3.10

WORKDIR /prod

COPY ./log.ini /prod/log.ini
COPY ./requirements.txt /prod/requirements.txt

RUN pip install --no-cache-dir --upgrade -r /prod/requirements.txt

COPY ./app /prod/app

CMD ["uvicorn", "app.main:app", "--host", "0.0.0.0", "--port", "8000", "--workers", "10", "--log-config", "log.ini"]

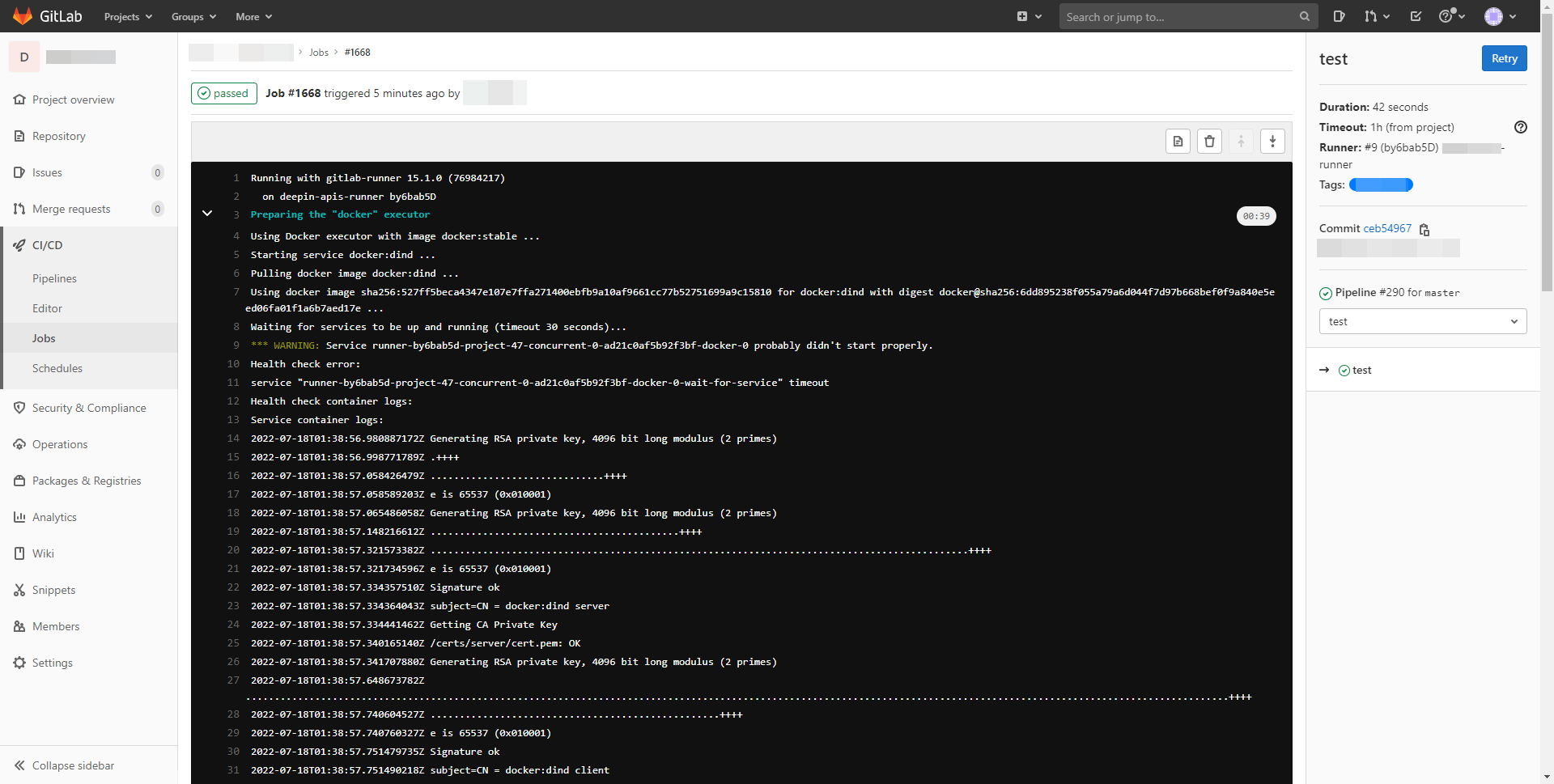

4. 결과 및 확인

01

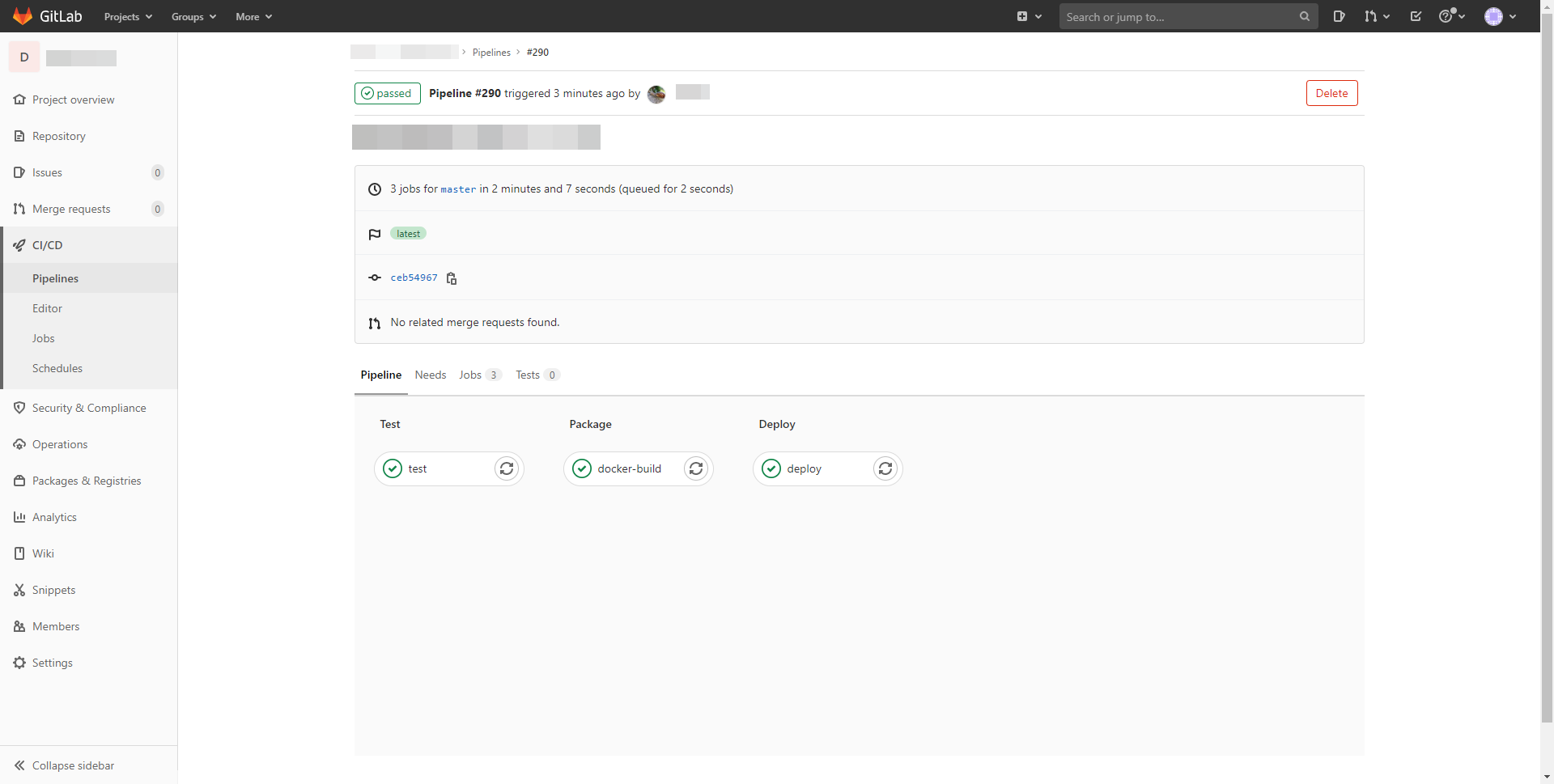

Gitlab CI/CD 확인



참고 : 링크1, 링크2, 링크3
